CARIS : Commands : Centre on Coordinate


Centre on Coordinate



Menu

View > Centre On > Coordinate

Tool

Centre the view in the Display window around specific coordinates.

Related commands:

• Centre on Selection

• Centre on Superselection

• Position Cursor

• Use Coordinate

Procedure

1. Select the Centre on Coordinate command.

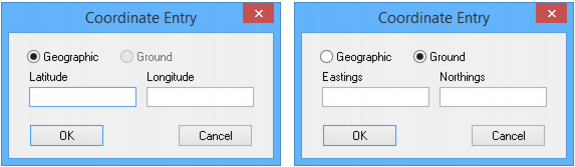

The Coordinate Entry dialog box is displayed.

Coordinates can be entered in the following formats:

• Geographic: Centre using latitude and longitude.

• Ground: Centre using eastings and northings.

2. Select Geographic or Ground.

3. Type coordinate values.

4. Click OK.

The Display window view is recentred.
