Menu | Select > Relationships |
Select and view feature relationships and add parents and children to the selection.
A feature relationship is a hierarchical relationship between features at the same location. One feature is designated the parent, others are its children. For example, a buoy could be a parent and attached equipment such as lights and navigational devices would be its children.
Feature relationships are called parent/child relationships in S‑57 data.
Related commands:
• • • • • • • • • • • • • | • • • • • • • • • • • • • |
Interface
Panel | Description |
|---|---|
Parent | A list of parents.
Contains the following information: • Feature ID: The feature object ID • Name: Attribute name • Object Name: |
Children | A list of the children of the selected parent.
|
Attributes | The attributes of the selected parent. Read-only.
|
Procedure
1. Select the Select Feature Relationships command.

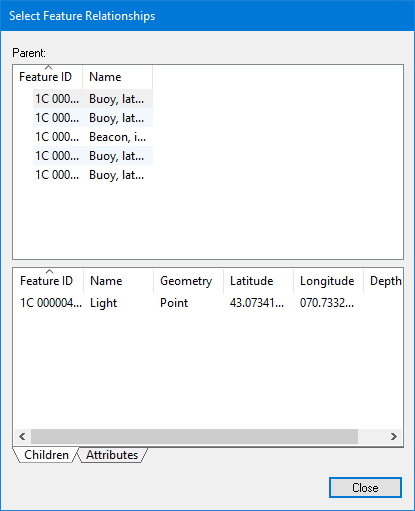

The Select Feature Relationships dialog box is displayed.
Add features to the selection or create a new selection using the various pop-up menus.
Menu item | Description |
|---|---|
Parents | |
Add to Selection From > All Parents | Add all listed parent features to the existing selection. |
Add to Selection From > This Parent | Add selected parent features to the existing selection. |
Add to Selection From > Children of this Parent | Add all children of the selected parent to the existing selection. |
Create Selection From > All Parents | Create a new selection from all listed parent features. |
Create Selection From > This Parent | Create a new selection from the selected parent feature. |
Create Selection From > Children of this Parent | Create a new selection from the children of the selected parent feature. |
Children | |
Add Child to Selection | Add the selected child or children to the existing selection. |
Create Selection from Children | Create a new selection from the selected child or children. |
